Product Description

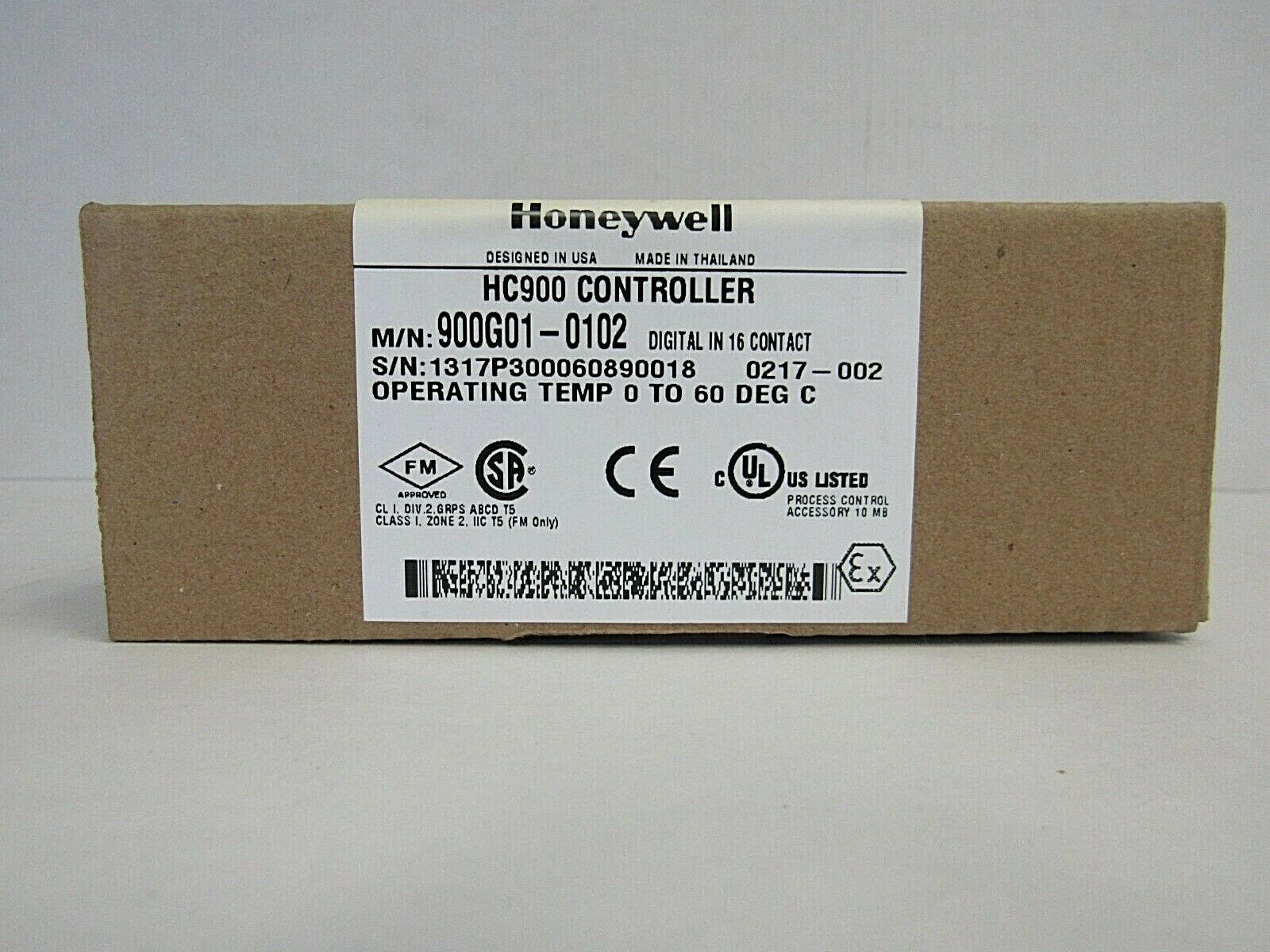

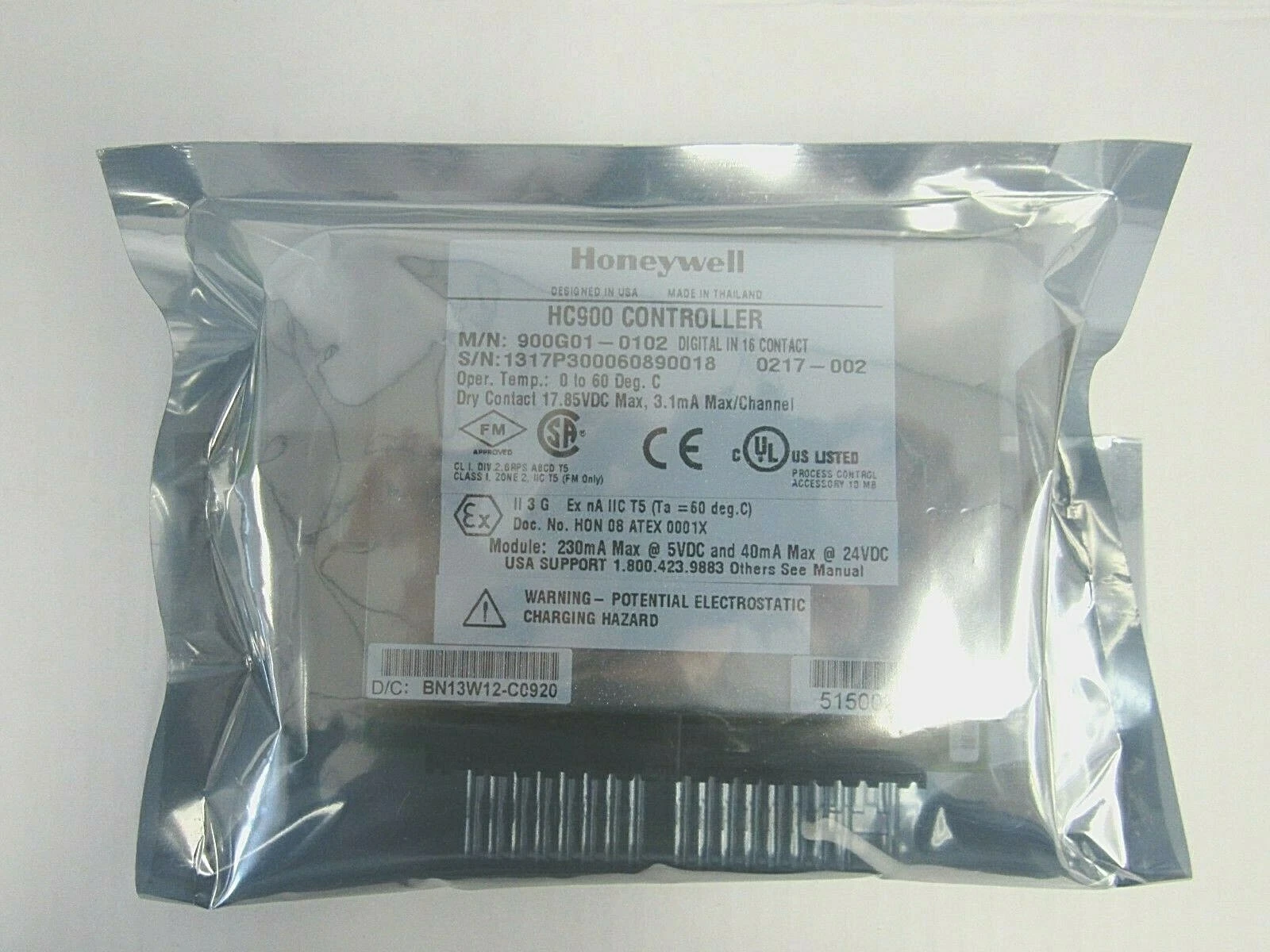

The Honeywell 900G01-0102 Digital Input Module is a 16-channel contact-type input module designed to integrate with the HC900 (900-series) control system from Honeywell. It is intended for industrial automation and process control applications, enabling the controller to read discrete (on/off) signals from field devices such as switches, relays, pushbuttons, and other contact-closure devices.

Key Features & Capabilities

• 16 Contact Input Channels: The module provides 16 discrete input points, allowing simultaneous monitoring of multiple signals — ideal for control panels with many sensors/contacts.

• Contact-Closure Compatibility: Designed for contact type inputs (i.e. “dry contacts” or switch/relay contacts), so it can interface with a variety of control-circuit contact devices.

• Galvanic Isolation Between Field Wiring and Logic/Backplane: Ensures that the module isolates field wiring (contacts) from the controller’s internal electronics — helping protect against noise, interference, or faults on field wiring.

• LED Indicators for Status & Module Diagnostics: Each input channel typically has a status LED that indicates when an input is ON. The module also provides diagnostics — useful for troubleshooting and maintenance.

• Compact & Rack-Mountable Design: The module is built to fit into standard HC900 I/O racks, making it easy to integrate into existing control panels.

• Industrial-Grade Reliability: Designed for use in industrial environments — for robust, long-term operation as part of a larger control system.

Typical Use Cases / Applications

• Monitoring on/off status from field devices such as switches, pushbuttons, relays, limit switches or simple contacts in process plants.

• Integrating discrete input signals into a larger automation/control system (e.g. as part of logic control, safety interlocks, status monitoring).

• Use in industrial control panels in manufacturing plants, water/waste-water treatment, HVAC systems, building automation, or any application where multiple contact signals need to be processed by a controller.

• As part of a modular control system (HC900), allowing flexible expansion: more inputs can be added by inserting additional modules without changing the main controller.

Summary / Overview

The Honeywell 900G01-0102 module is a reliable, straightforward 16-channel contact-input module for the HC900 controller series. Its contact-closure input capability, galvanic isolation, channel-level diagnostics, and compact rack-mount design make it suitable for a wide variety of industrial automation and control applications — especially where discrete signals from multiple field devices need to be monitored and processed by a central controller.
