Product Overview

The Honeywell 51403776-100 LCNP4M is a controller card / system processor designed for use with the Honeywell TDC 3000 distributed control system (DCS), often deployed with the TotalPlant Solution (TPS) framework and Global User Station (GUS) environments.

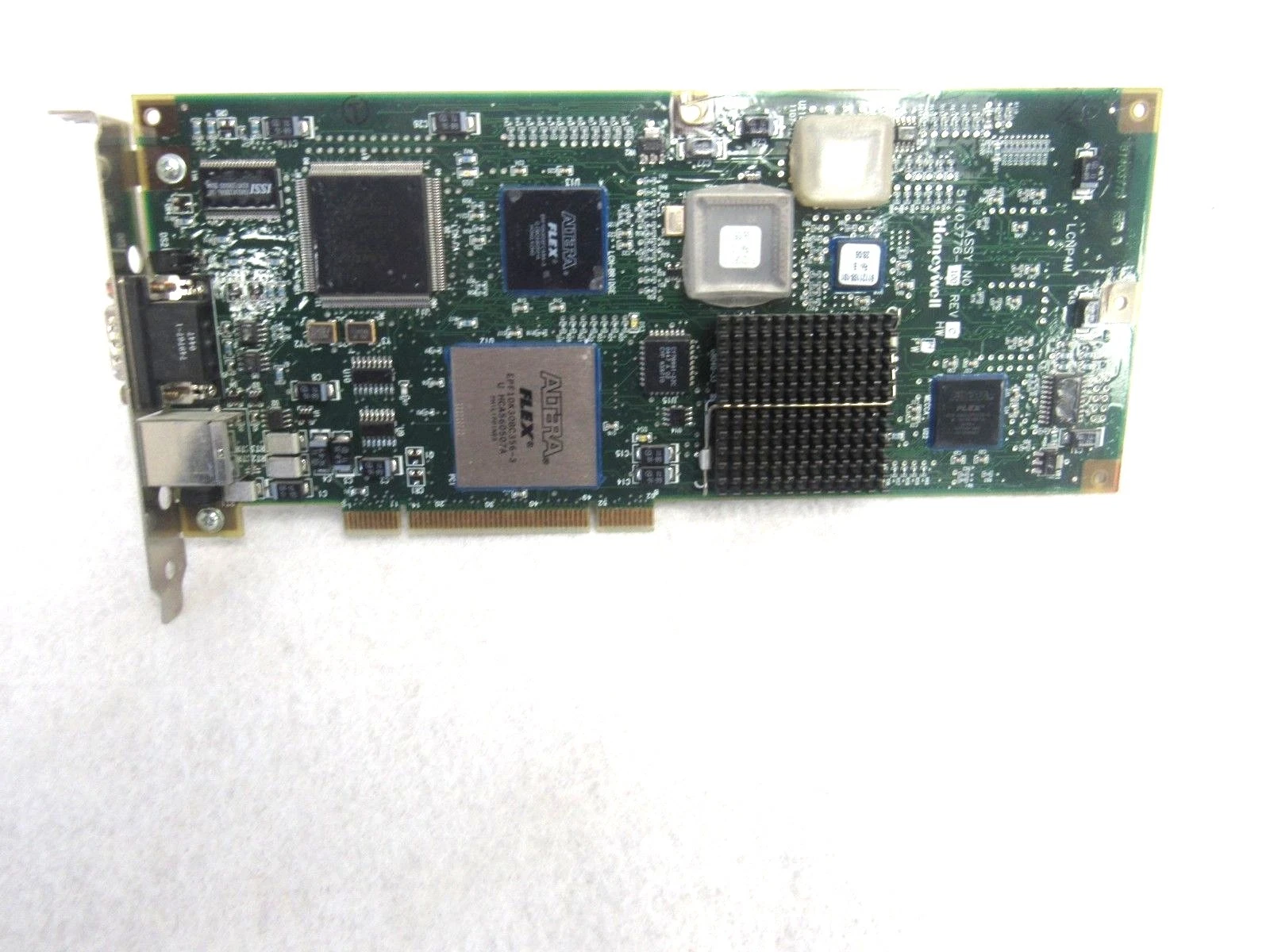

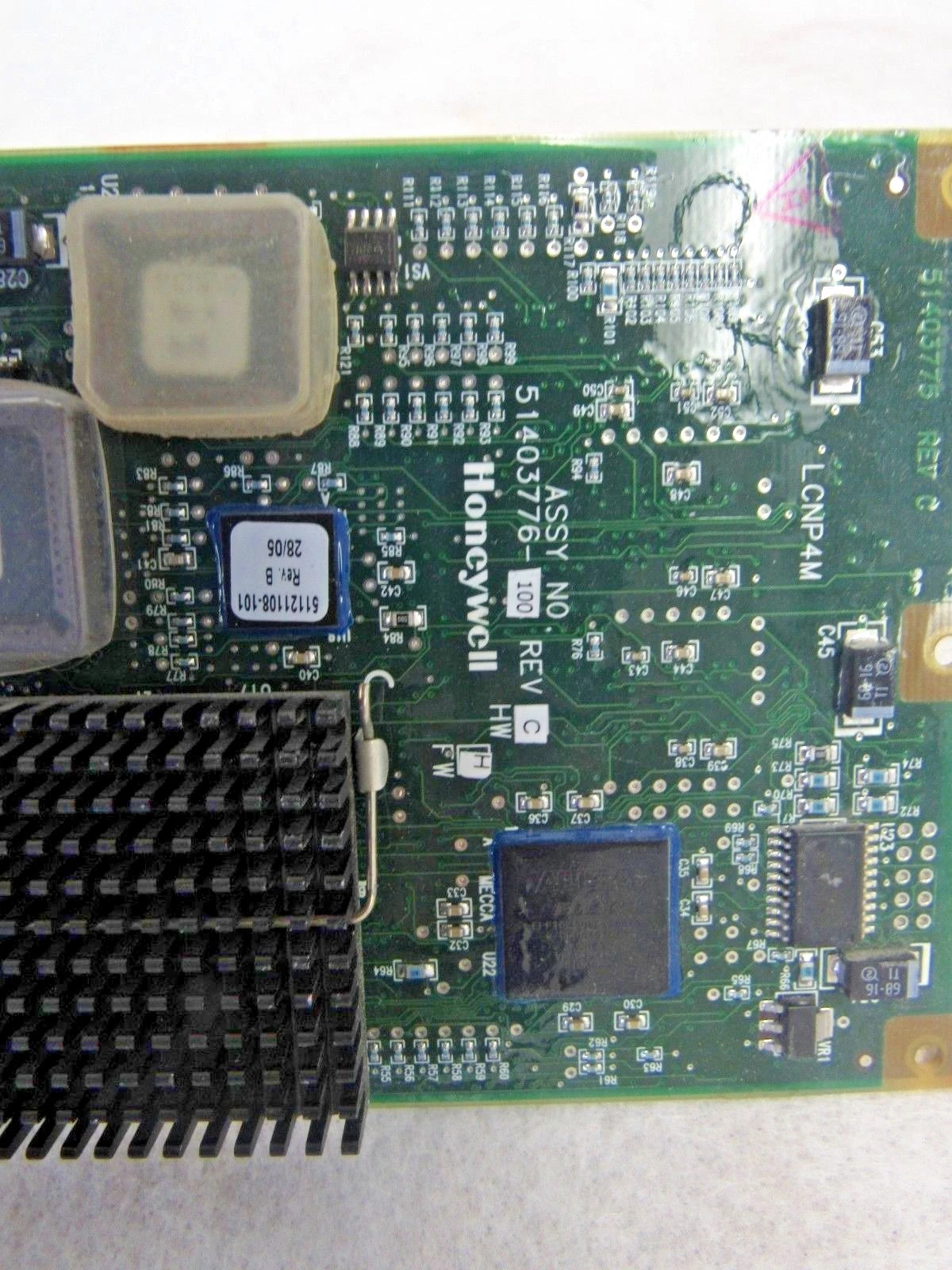

This processor board — revision “Rev C FW H” — is typically identified as “TPS Sys Processor TDC 3000 GUS 19-2”, indicating its compatibility with TPS-based DCS installations.

Key Features & Specifications

• Processor core: Uses the 68040 microprocessor, providing reliable, field-proven computing power for industrial control tasks.

• Memory: 16 MW — suitable for handling complex control logic, process data, and system tasks.

• Modern hardware compatibility: The LCNP4M board introduced a more compact form factor and support for 3.3-volt PCI-X sockets — useful when integrating with newer PCs or workstations with space/electrical constraints.

• Time synchronization support: Includes a connection for a GPS time-sync source to control the LCN clock — important for accurate timestamping and coordination in distributed control networks.

• DCS / TPS Integration: Designed to work fully within Honeywell’s Local Control Network (LCN) and TPS domains; compatible with GUS release R110.1 or higher.

Use Cases / Application Environments

This LCNP4M processor board is suited for industrial environments requiring robust, distributed control:

• Large-scale process plants, including petrochemical, oil & gas, refining, power generation, and manufacturing.

• Systems using TDC 3000 or TPS — especially where reliable legacy DCS architecture must integrate with newer hardware.

• Control scenarios demanding precise timing and synchronization across multiple control nodes (thanks to GPS time-sync support).

• Upgrades or maintenance of existing TPS / DCS installations where original processor cards have aged or require replacement.

Compatibility & Requirements

• Compatible only with GUS (Global User Station) release R110.1 or higher.

• Requires a system with appropriate PCI-X slots (3.3 V) for installation.

• Integrates into standard TDC 3000 architecture — forming part of the controller network (LCN → UCN → PIN), typically alongside other modules (I/O cards, network interface, history modules, operator stations, etc.).

Typical Scenario (Why It Matters)

By installing the 51403776-100 LCNP4M, operators and plant engineers can maintain or upgrade existing TDC 3000 / TPS systems without replacing the entire control infrastructure. The increased memory and faster 68040 processor help ensure the DCS continues to handle complex control logic, data logging, and synchronized operation — critical in process industries where downtime or failure can be costly or dangerous.
