Product Overview

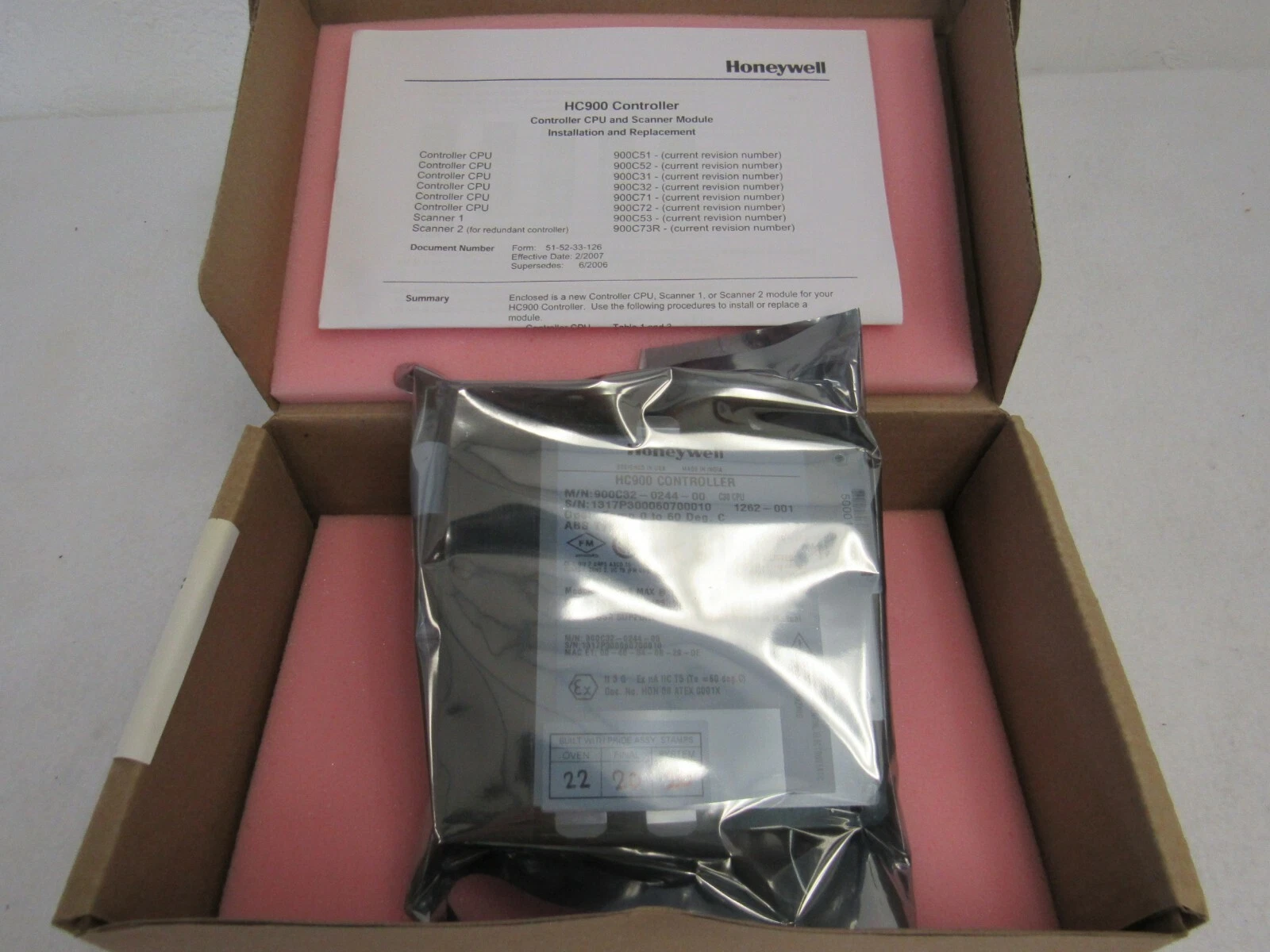

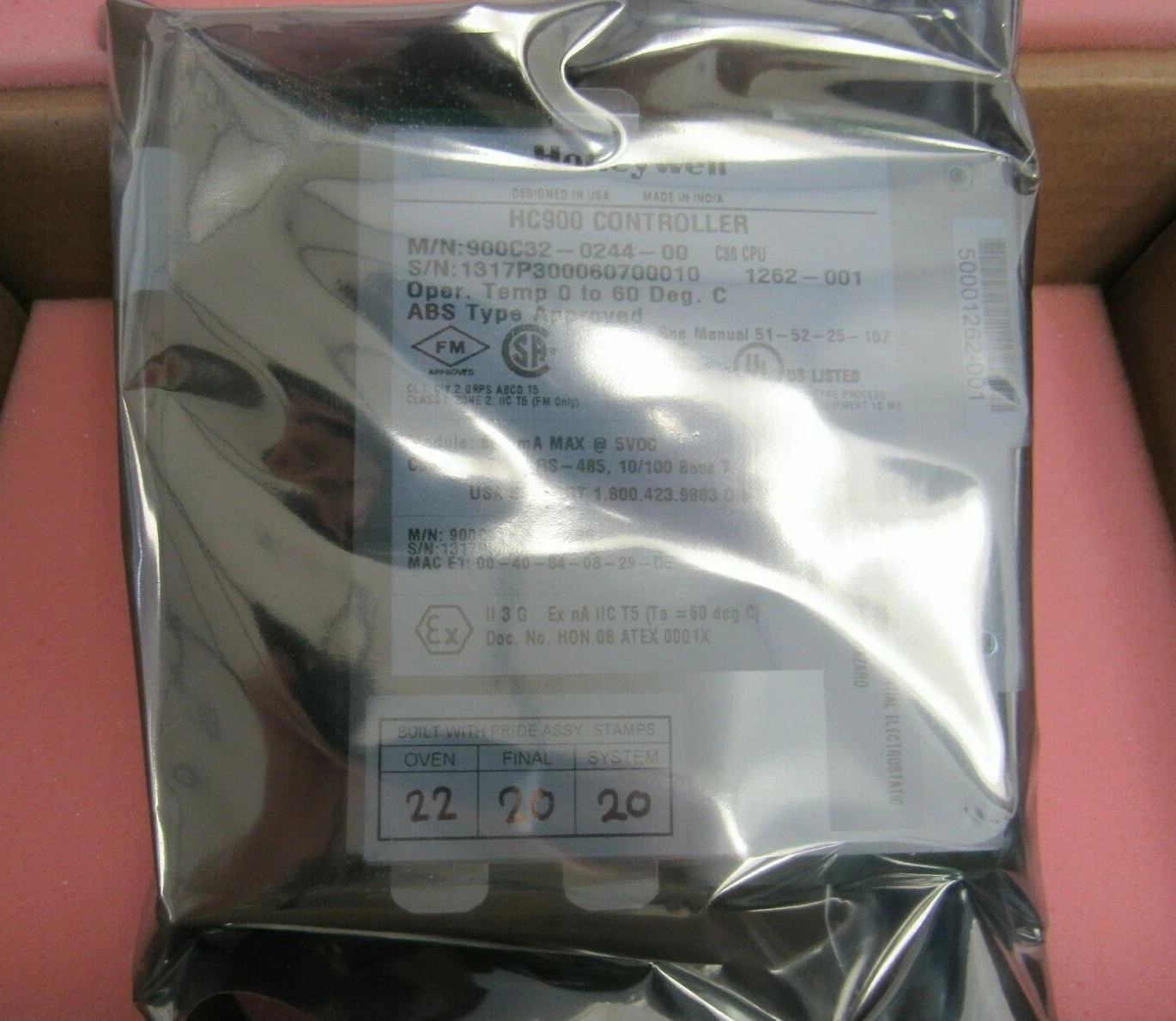

The Honeywell 900C32-0244-00 is a CPU module designed for the Honeywell ControlEdge HC900 process controller family. It functions as the central processing unit for an HC900-based control rack, providing the computational power and control logic needed to run industrial automation applications.

As a “C30 CPU” type module, this unit is intended for small- to medium-scale control systems where flexible, reliable, real-time logic and process control are required.

Key Features & Specifications

• Processor: 32-bit RISC CPU (PowerPC-based) — optimized for real-time logic, analog and digital processing.

• Power supply: 24 V DC input (standard for HC900 modules)

• Power consumption: Approximately 60 W.

• Memory: Built-in controller memory (on-board RAM/flash) to store logic, configurations, and process data.

• Communication Interfaces: Supports Ethernet, RS-485 (serial), and USB (depending on configuration) — enabling connectivity with external Human-Machine Interface (HMI), SCADA systems, or other controllers.

• I/O Support: As part of HC900 architecture, supports integration of analog and digital I/O modules for expanding I/O capabilities (remote or local).

• Programming / Control Capability: Capable of handling logic, function-block, analog loop, and PID control schemes (via the HC900 platform), supporting a variety of automation and process-control tasks.

• Reliability Features: Built-in watchdog timer for execution protection; modular design allows flexible rack/I-O configuration; widely used and proven in industrial environments.

Typical Applications / Use Cases

The HC900 controller with the 900C32-0244-00 CPU module is used in a broad range of industrial automation and process control environments, including:

• Thermal control systems — boilers, furnaces, kilns, dryers.

• Process industries — chemical, petrochemical, water/wastewater treatment, manufacturing, food & beverage processing.

• Unit processing — reactors, fermenters, sterilizers, or any custom process requiring logic, analog/digital I/O, PID loops.

• Auxiliary systems — HVAC, utility monitoring, data-collection and control tasks where a robust and modular controller is needed.

Advantages / Why It Matters

• Modular & Scalable: As part of the HC900 platform, the system can scale from small to larger projects by adding I/O modules or expanding analog/digital inputs/outputs as needed.

• Flexible Communications: Ethernet + serial connectivity enable integration with many HMI/SCADA systems, remote I/O racks, or peer controllers.

• Robust Process Control: Supports a rich set of function blocks (logic, analog, PID, scheduling, sequences, alarms) for complex automation tasks.

• Reliability & Industrial-Grade: Designed for industrial environments, with safeguards like watchdog timer, and capable of handling analog and digital I/O — ideal for long-term, mission-critical applications.

• Cost-Effective for Mid-Range Automation: As a C30 CPU module, it’s suitable where a full DCS might be overkill, but precise control and expandability are still necessary — a good balance between capability and affordability.
